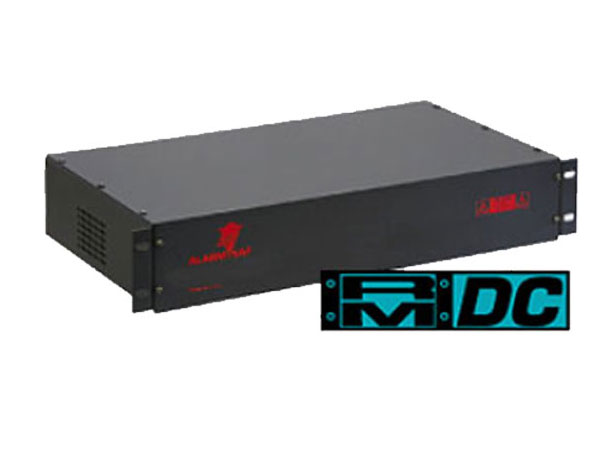

RACK MOUNT BATTERY ENCLOSURE - RMBE-1224-4B7
The RMBE-1224-4B7 provides two independent 7 Ah battery sets for 12 and/or 24 VDC battery back-up from a single rack mount battery enclosure and is designed to fit into standard IT equipment racks. Designed as a companion product to the popular AlarmSaf RMDC Rack Mount Power Supplies, the RMBE-1224-4B7 is an exceptional solution for meeting battery backup requirements in access control, fire, security and other system applications requiring rack mount equipment.
This unique system can also be used for battery back-up to panels and any other rack mountable equipment requiring a 12VDC or 24VDC sealed lead acid battery set.
RMBE Features:
- Single or dual voltage battery backup from a single rack mount battery enclosure
- Can be configured for 12V, 24V, or simultaneous 12 and 24V use
- Two 7 Ah battery sets (4 batteries) included
- Internal self- resetting PTC’s for individual battery protection
- Directly connects to any AlarmSaf RMDC power supply for charging
- Compatible with other external equipment
- Battery sets can be paralleled to double the AH capacity
- Multiple RMBE units can be paralleled to increase battery capacity
- Exterior positional jumpers allow configuration without opening unit
- Pluggable output terminals feature locking screws
- Removable terminal strips for ease of wiring and service
- Standard 2U EIA, 19” rack mount chassis
- Easy battery replacement
Configuration Options
Battery Back-Up Applications:
- Fire/Life Safety Systems
- Access Control Systems
- Security Systems
- CCTV Equipment
Rack Mount Power Supplies Documentation
| Model # | Order # | Current | Output Voltage | Outputs | Dimensions | Datasheet | Installation |
|---|---|---|---|---|---|---|---|
| RM-2416 | 03001 | 52-337 | Installation | ||||
| RM-2416F | 03002 | 52-334 | Installation | ||||
| RM-2816-300 | 03005 | 52-338 | Installation | ||||
| RM-2816-600 | 03006 | 52-339 | Installation | ||||
| RM-2816F-300 | 03007 | 52-336 | Installation | ||||
| RM-2816F-600 | 03008 | 52-335 | Installation | ||||
| RM-2832-300 | 03009 | 52-338 | Installation | ||||
| RM-2832-600 | 03010 | 52-339 | Installation | ||||
| RM-2832F-300 | 03011 | 52-336 | Installation | ||||
| RM-2832F-600 | 03012 | 52-335 | Installation | ||||
| RMDC-12416F | 03014 | 52-378 | Installation | ||||
| RMDC-1248F | 03015 | 52-377 | Installation | ||||
| RMDC-12416F | 03016 | 52-378 | Installation | ||||
| RMDC-1248 | 03017 | 52-377 | Installation | ||||
| RMDC-PS5-M | 03018 | 52-379 | Installation | ||||
| RMDC-PS5-MD | 03019 | 52-380 | Installation | ||||
| RMDC-PS5-M-UL-FAI | 03020 | 52-379 | Installation | ||||
| RMDC-PS5-M-8-UL-FAI | 03021 | 52-377 | Installation | ||||
| RMDC-PS5-M-8F-UL-FAI | 03022 | 52-377 | Installation | ||||
| RMDC-PS5-MD-UL-FAI | 03023 | 52-380 | Installation | ||||
| RMDC-PS5-MD-16-UL-FAI | 03024 | 52-378 | Installation | ||||
| RMDC-PS5-MD-16F-UL-FAI | 03025 | 52-378 | Installation | ||||
| RMBE-1224-4B7 | 03027 | 52-388 | Installation | ||||
| RM-APD16 | 03029 | 52-398 | Installation | ||||
| RM-APD16F | 03030 | 52-398 | Installation |
